Overview

The YBF series prefabricated substation is used in 7.2kV and 12kV ring network power supply, dual power supply or terminal power supply system, as high voltage power distribution, metering, compensation, control and protection devices. In addition to the transformer, the pre-installed substation is equipped with a four-station load switch or a two-station load switch, a backup protection fuse and a plug-in fuse on the high-voltage side; the control unit and the distribution electric appliance are assembled on the low-voltage side according to user requirements. , compensation devices and energy meters.

The YBF series prefabricated substation can be used indoors or outdoors, and is widely used in industrial parks, residential quarters, commercial centers and high-rise buildings.

Structural features

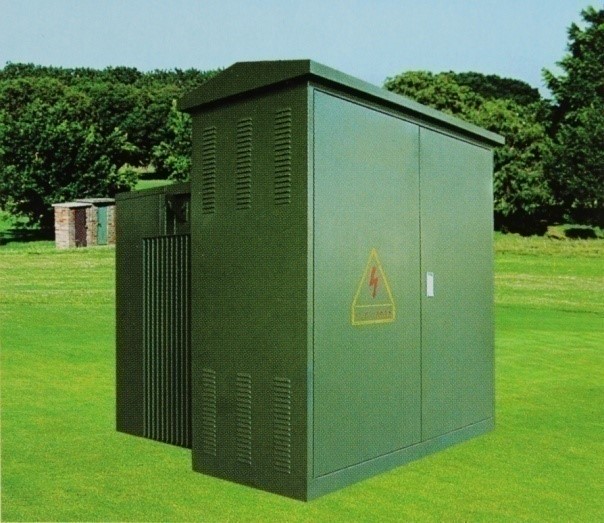

The American box variable structure is divided into two parts. The front is the high and low voltage operation interval. The high-voltage interval includes a high-voltage terminal, a load switch, a no-load tap-changer, a plug-in fuse, and a pressure relief valve, an oil temperature gauge, an oil level gauge, and a drain valve; the low-voltage interval includes a low-voltage terminal; the rear portion is The fuel injection tank and the heat sink, the transformer winding and the iron core, the high voltage load switch and the protective fuse are all in the fuel tank.

Performance characteristics

★ Small size and compact structure, only about 1/3 of the same capacity box in China;

★ Fully sealed, fully insulated, no insulation distance, and reliable personal safety;

★ It can be used for both ring and terminal, and the conversion is very convenient, which improves the reliability of power supply;

★ Low loss, lower than domestic S9 transformer loss;

★ Cable connector can operate 200A load current, can be used as load switch in emergency situations, and has the characteristics of isolation switch;

★ Double fuse protection reduces operating costs. The plug fuse is a double sensitive fuse (temperature, current);

★ Adopting △/Y connection method and three-phase five-column structure, the voltage quality is high, the neutral point does not drift, the box body does not generate heat, the noise is low, and the lightning protection performance is good.

Conditions of Use

★ Altitude: ≤1000m (more than this range is designed separately);

★ Wind pressure: no more than 70Pa (equivalent to 35m / s);

★ Humidity: the daily average is not more than 95%, and the monthly average is not more than 90%;

★ Ambient temperature: the highest temperature +55 ° C, the lowest temperature -25 ° C;

★ Anti-vibration level: horizontal acceleration 0.4m/s2; vertical acceleration 0.15m/s2;

★ Earthquake intensity: 8 degrees;

★ Installation location: the inclination is not more than 3°;

★ Installation environment: The surrounding air is not polluted by corrosive, flammable gases and water vapor, and there is no severe vibration at the installation site.
